SIVS Series DC Solar Water Pump with SS Impeller

  • MPPT DC controller
  • Efficient PMSM brushless motor
  • (PMSM: Permanent Magnet Synchronous Motor)
Catalogue Contact support Email
  • Features
  • Specifications
  • Downloads
  • Solutions
  • Cases
  • News
  • Related Products
  • Additional Information

SIVS DC Solar Water Pump with SS Impeller Overview

MPPT DC Controller
Protection class: IP55
Ambient temperature:-15~60℃MPPT
Working conditions & fault code on LED screen
Auto Start & Stop
Soft start & frequency conversion

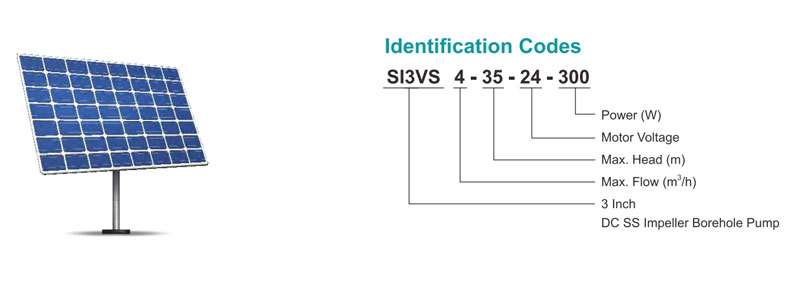

Identification Codes

Free Spare Parts

free spare parts

4" DC solar pump with ss impeller

3" DC Solar Pump with Plastic Impeller

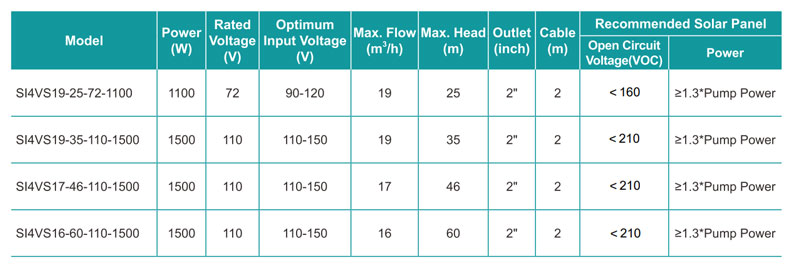

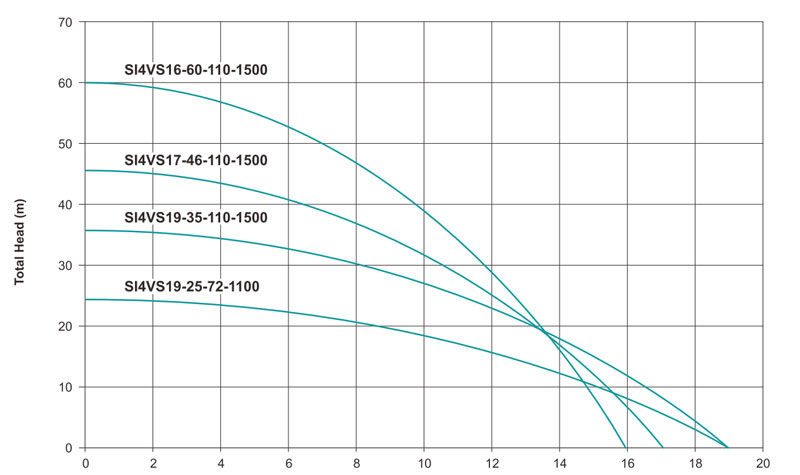

Technical Data

Industrial Applications for SIVG DC Solar Water Screw Pump

  • Agriculture irrigation, livestock feeding, domestic watering
  • Clean water supply from wells or reservoirs
  • Off-grid solar pumping system

Specifications

Basic Information
 Categories DC solar submersible pump
Brand VEICHI
Type 3/4/6 inch solar pump with s/s impeller
Pump Body Material Stainless steel
Impeller Material Stainless steel
Package Type Wooden case
Warranty 2 years
Certificate CE
Technical Data
 Power Range 300-1500W
Related Voltage DC: 24/48/72/110V
Optimum Input Voltage 30-48v~110-150V
Max Flow 4-7.5 m3/h
Max Head 35-203m
Outlet 1¼" / 2”/ 3”inch
Show more specifications Show less specifications

Downloads

File Name Type Language File Type Update Download
BLDC Solar Water Pump Catalog V1.0 Catalog English PDF 2023-09-11 icon-download 7.23MB
