VCS-108H Series Monocrystalline Bifacial Solar Panel
- 16BB Half Cell Technology.
- Significantly reduce the risk of hot spots.
- Lower electricity cost.
- Excellent anti PID performance.
- IP68 junction box.
Catalogue
Contact support
EmailVCS-108H Series 405-430W Monocrystalline Bifacial Solar Panel Overview
These monocrystalline bifacial solar panels are known for their high energy conversion efficiency, VCS-108H monocrystalline solar panel typically ranging from 405 to 430 watts. This means they can generate a substantial amount of electricity from sunlight, making them suitable for various applications.
Features of VCS-108H Series 405-430W Monocrystalline Bifacial Solar Panel
1. New circuit design, lower internal current, lower internal current Resistance loss gallium doped silicon wafer, first year attenuation＜1%, linear attenuation Minus ≤0.4%.
2. Unique circuit design significantly reduces hot spot temperature and reduces work Rate loss increases component power generation.
3. Increase power generation by 3% and reduce cost per kilowatt hour.
4. TUV SGS has twice the industry standard PID resistance(Potential induced attenuation) test (85"C/85% RH 192 hours).
5. High standard waterproof performance, effective protection against harsh environments.

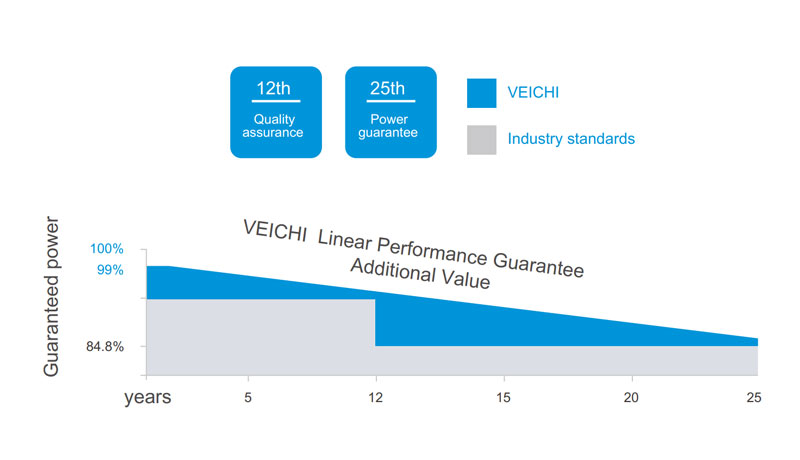

Quality Assurance
Comprehensive Product and System Certification
- IEC 61215, IEC 61730
- ISO9001: 2015/Quality Management System
- ISO14001: 2015/Environmental Management Systems
- ISO45001: 2018/Occupational Health and Safety Management
- System Certification
Applications for VCS-108H Series 405-430W Monocrystalline Bifacial Solar Panel
The VCS-108H series 405-430W monocrystalline bifacial solar panels are suitable for a wide range of applications, including residential rooftop installations, commercial solar projects, and utility-scale solar farms.
Specifications
| VCS-108H-405-D | Maximum rated power(W): 405 Maximum power voltage (V): 31.40 Maximum power current (A): 12.90 Open circuit voltage(V): 38.07 Short circuit current(A): 13.85 Component efficiency(%): 20.74 |
|---|---|
| VCS-108H-410-D | Maximum rated power(W): 410 Maximum power voltage (V): 31.59 Maximum power current (A): 12.98 Open circuit voltage(V): 38.20 Short circuit current(A): 13.93 Component efficiency(%): 21.00 |
| VCS-108H-415-D | Maximum rated power(W): 415 Maximum power voltage (V): 31.78 Maximum power current (A): 13.06 Open circuit voltage(V): 38.33 Short circuit current(A): 14.01 Component efficiency(%): 21.25 |
| VCS-108H-420-D | Maximum rated power(W): 420 Maximum power voltage (V): 31.96 Maximum power current (A): 13.14 Open circuit voltage(V): 38.46 Short circuit current(A): 14.09 Component efficiency(%): 21.51 |
| VCS-108H-425-D | Maximum rated power(W): 425 Maximum power voltage (V): 32.15 Maximum power current (A): 13.22 Open circuit voltage(V): 38.59 Short circuit current(A): 14.17 Component efficiency(%): 21.76 |
| VCS-108H-430-D | Maximum rated power(W): 430 Maximum power voltage (V): 32.33 Maximum power current (A): 13.30 Open circuit voltage(V): 38.72 Short circuit current(A): 14.25 Component efficiency(%): 22.02 |
| VCS-108H-405-D | Maximum rated power(W): 309.8 Maximum power voltage (V): 29.45 Maximum power current (A): 10.52 Open circuit voltage(V): 36.20 Short circuit current(A): 11.16 |
|---|---|
| VCS-108H-410-D | Maximum rated power(W): 313.5 Maximum power voltage (V): 29.60 Maximum power current (A): 10.60 Open circuit voltage(V): 36.30 Short circuit current(A): 11.23 |
| VCS-108H-415-D | Maximum rated power(W): 317.3 Maximum power voltage (V): 29.70 Maximum power current (A): 10.68 Open circuit voltage(V): 36.40 Short circuit current(A): 11.30 |
| VCS-108H-420-D | Maximum rated power(W): 321.1 Maximum power voltage (V): 29.90 Maximum power current (A): 10.75 Open circuit voltage(V): 36.50 Short circuit current(A): 11.36 |
| VCS-108H-425-D | Maximum rated power(W): 325 Maximum power voltage (V): 30.00 Maximum power current (A): 10.82 Open circuit voltage(V): 36.60 Short circuit current(A): 11.42 |
| VCS-108H-430-D | Maximum rated power(W): 328.7 Maximum power voltage (V): 30.20 Maximum power current (A): 10.89 Open circuit voltage(V): 36.80 Short circuit current(A): 11.49 |
| Maximum Power temperature coefficient(Pmax) | -0.34%℃ |
|---|---|
| Open Circuit voltage temperature coefficient(Voc) | -0.26%℃ |
| Short Circuit voltage temperature coefficient(Isc) | -0.05%℃ |
| Working temperature | -40~+85℃ |
| Rated operating cell temperature | 42±2℃ |
| Specifications | Single crystal silicon 182×182mm |
|---|---|
| Battery arrangement | Single crystal 108[2✖(9✖6)] |
| Component dimensions | 1722✖1134✖30mm |
| Component weight | 24.5kg |
| Component panel | 2mm-2mm semi tempered glass |
| Component border | Anodic oxygen film aluminum alloy |
| Junction box | IP68, 3 Diodes |
| Wireway | 4.0 square millimeters(IEC) |
| Wire length(including connectors) | 300mm, wire length can be customized |
| Connector | KSW-CN01 |
