VCS-144H Series Monocrystalline Bifacial Solar Panel
- 16BB Half Cell Technology.
- Significantly reduce the risk of hot spots.
- Lower electricity cost.
- Excellent anti PID performance.
- IP68 junction box.
Catalogue
Contact support
EmailVCS-144H Series 560-585W Monocrystalline Bifacial Solar Panel Overview
These monocrystalline bifacial solar panels are known for their high energy conversion efficiency, VCS-144H monocrystalline solar panel typically ranging from 560 to 585 watts. This means they can generate a substantial amount of electricity from sunlight, making them suitable for various applications.
Features of VCS-144H Series 560-585W Monocrystalline Bifacial Solar Panel
1. New circuit design, lower internal current, lower internal current Resistance loss gallium doped silicon wafer, first year attenuation＜1%, linear attenuation Minus ≤0.4%.
2. Unique circuit design significantly reduces hot spot temperature and reduces work Rate loss increases component power generation.
3. Increase power generation by 3% and reduce cost per kilowatt hour.
4. TUV SGS has twice the industry standard PID resistance(Potential induced attenuation) test (85"C/85% RH 192 hours).
5. High standard waterproof performance, effective protection against harsh environments.

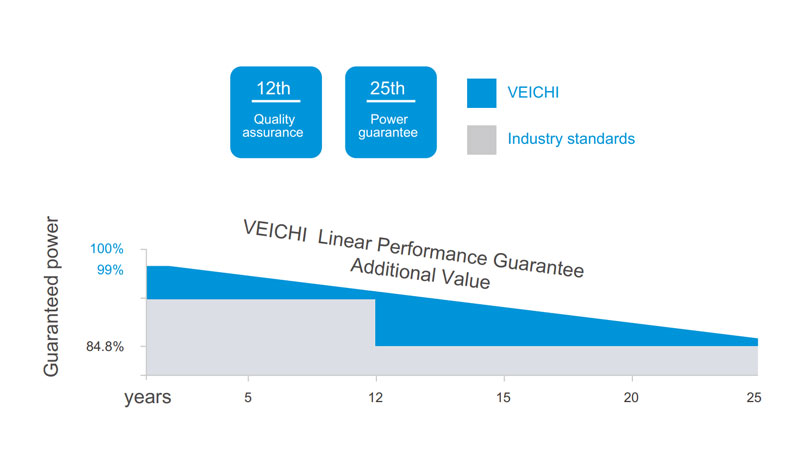

Quality Assurance
Comprehensive Product and System Certification
- IEC 61215, IEC 61730
- ISO9001: 2015/Quality Management System
- ISO14001: 2015/Environmental Management Systems
- ISO45001: 2018/Occupational Health and Safety Management
- System Certification
Applications for VCS-144H Series 560-585W Monocrystalline Bifacial Solar Panel
The VCS-144H series 560-585W monocrystalline bifacial solar panels are suitable for a wide range of applications, including residential rooftop installations, commercial solar projects, and utility-scale solar farms.
Specifications
| VCS-144H-560-D | Maximum rated power(W): 560 Maximum power voltage (V): 42.20 Maximum power current (A): 13.27 Open circuit voltage(V): 50.90 Short circuit current(A): 14.00 Component efficiency(%): 21.67 |
|---|---|
| VCS-144H-565-D | Maximum rated power(W): 565 Maximum power voltage (V): 43.32 Maximum power current (A): 13.35 Open circuit voltage(V): 51.03 Short circuit current(A): 14.08 Component efficiency(%): 21.86 |
| VCS-144H-570-D | Maximum rated power(W): 570 Maximum power voltage (V): 42.44 Maximum power current (A): 13.43 Open circuit voltage(V): 51.16 Short circuit current(A): 14.16 Component efficiency(%): 22.06 |
| VCS-144H-575-D | Maximum rated power(W): 575 Maximum power voltage (V): 42.56 Maximum power current (A): 13.51 Open circuit voltage(V): 51.29 Short circuit current(A): 14.24 Component efficiency(%): 22.25 |
| VCS-144H-580-D | Maximum rated power(W): 580 Maximum power voltage (V): 42.68 Maximum power current (A): 13.59 Open circuit voltage(V): 51.42 Short circuit current(A): 14.32 Component efficiency(%): 22.44 |
| VCS-144H-585-D | Maximum rated power(W): 585 Maximum power voltage (V): 42.80 Maximum power current (A): 13.67 Open circuit voltage(V): 51.53 Short circuit current(A): 14.41 Component efficiency(%): 22.64 |
| VCS-144H-560-D | Maximum rated power(W): 426.9 Maximum power voltage (V): 39.80 Maximum power current (A): 10.72 Open circuit voltage(V): 48.30 Short circuit current(A): 11.29 |
|---|---|
| VCS-144H-565-D | Maximum rated power(W): 430.7 Maximum power voltage (V): 39.90 Maximum power current (A): 10.79 Open circuit voltage(V): 48.50 Short circuit current(A): 11.35 |
| VCS-144H-570-D | Maximum rated power(W): 434.6 Maximum power voltage (V): 40.10 Maximum power current (A): 10.85 Open circuit voltage(V): 48.60 Short circuit current(A): 11.42 |
| VCS-144H-575-D | Maximum rated power(W): 438.4 Maximum power voltage (V): 40.20 Maximum power current (A): 10.91 Open circuit voltage(V): 48.70 Short circuit current(A): 11.48 |
| VCS-144H-580-D | Maximum rated power(W): 442.1 Maximum power voltage (V): 40.30 Maximum power current (A): 10.97 Open circuit voltage(V): 48.80 Short circuit current(A): 11.55 |
| VCS-144H-585-D | Maximum rated power(W): 446.2 Maximum power voltage (V): 40.42 Maximum power current (A): 11.04 Open circuit voltage(V): 48.92 Short circuit current(A): 11.62 |
| Maximum Power temperature coefficient(Pmax) | -0.34%℃ |
|---|---|
| Open Circuit voltage temperature coefficient(Voc) | -0.26%℃ |
| Short Circuit voltage temperature coefficient(Isc) | -0.05%℃ |
| Working temperature | -40~+85℃ |
| Rated operating cell temperature | 42±2℃ |
| Specifications | N-TOPCON 182×182mm |
|---|---|
| Battery arrangement | N-TOPCON 144[2✖(6✖2)] |
| Component dimensions | 1722✖1134✖30mm |
| Component weight | 31.5kg |
| Component panel | 2mm-2mm semi tempered glass |
| Component border | Anodic oxygen film aluminum alloy |
| Junction box | IP68, 3 Diodes |
| Wireway | 4.0 square millimeters(IEC) |
| Wire length(including connectors) | 300mm, wire length can be customized |
| Connector | KSW-CN01 |
